What does federal law require on USDOT magnetic signs?
Federal law requires USDOT number display on commercial vehicles exceeding 10,001 pounds GVWR under 49 CFR 390.21. Size, shape, location, and color of USDOT Magnetic signs:
- Both-side placement on power unit (cab/door area, 2 Pack)
- 2 inch minimum letter height for 50-foot visibility
- High-contrast colors (black on white recommended)
- Company name exactly as registered on Form MCS-150
Under FMCSA 49 CFR Part 390.21, every commercial motor vehicle exceeding 10,001 pounds GVWR operating in interstate commerce must display USDOT identification on both sides of the power unit. Magnetic signs satisfy these requirements when they meet the federal minimum specifications:
- Letter height: 2 inches minimum, legible from 50 feet in daylight. Signazon USDOT magnet templates render your assigned number at compliant height automatically.
- Color contrast: high-contrast against the vehicle background — black on white is the most common compliant combination on steel cab doors of any color.
- Required information: the letters "USDOT" followed by the assigned number, the company's legal business name exactly as registered on Form MCS-150, and the city and state of the carrier's principal place of business.

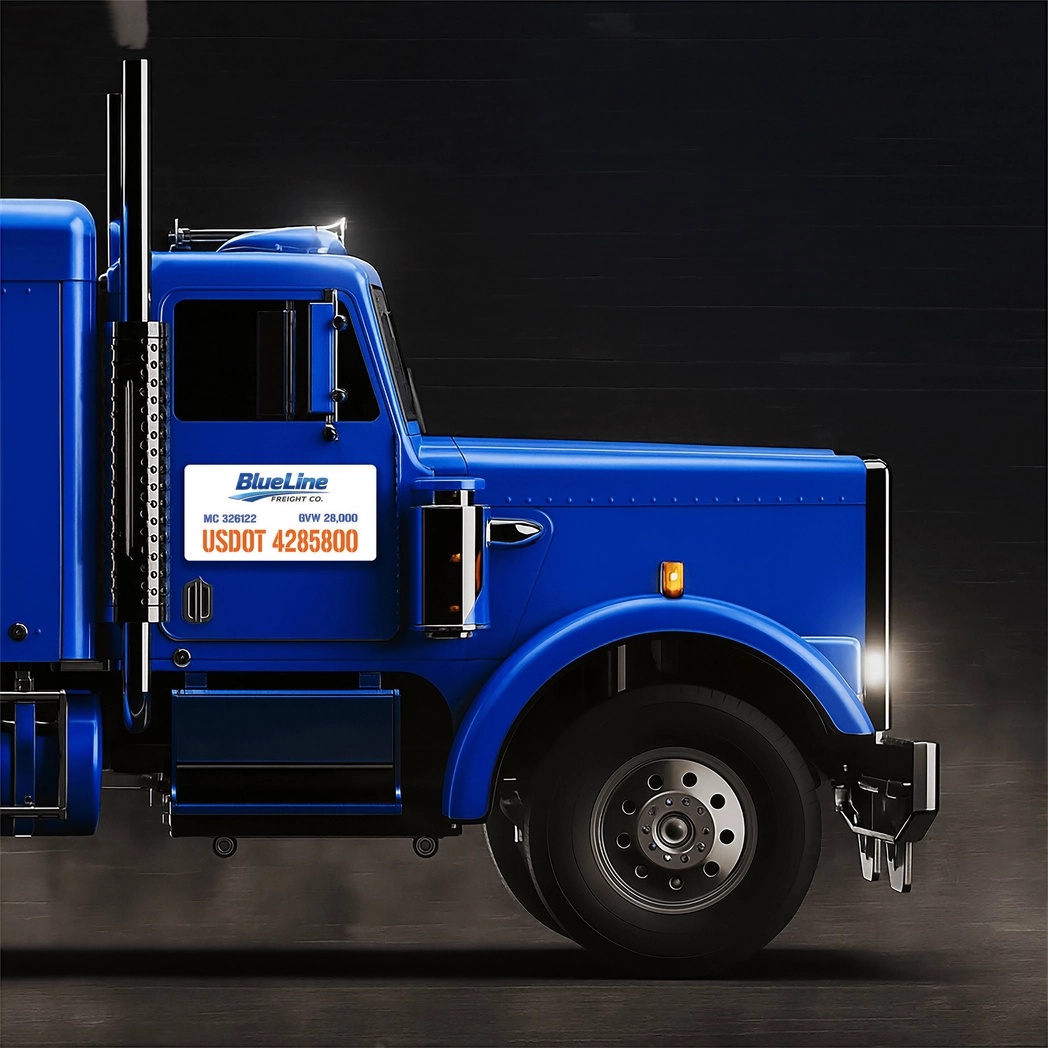

- Placement: both sides of the cab or power unit, in a location that does not obscure other vehicle markings. Magnetic placement should also avoid rivets, seams, and body panel gaps where the magnet cannot lie flat.
When magnets are the right choice
USDOT magnets are the most flexible compliance option for commercial trucks. They attach to any steel surface, hold securely at highway speeds, and remove cleanly without residue or paint damage.
Choose USDOT magnets when:
- Your truck cab doors are steel.
- You drive a leased or rental truck and need a damage-free, removable solution.
- You use a personal vehicle for business and need to remove commercial markings off-duty.
- Your routes do not pass through jurisdictions requiring permanently affixed markings.
Avoid the Top 4 Common Design Errors on USDOT Magnets
Most compliance failures on FMCSA USDOT magnetic signs come from a small set of preventable mistakes. Each one is easy to catch before you order — if you know what to look for.
Mistake 1: Confusing product size with letter height
Ordering a "3-inch magnet" expecting it to have 3-inch letters. The product dimension is the overall magnet size and includes margins, background space, and any logo or graphic area around the text. The actual letter height is always smaller than the product dimension.
Solution: Check the letter height indicator inside the Signazon Online Design Studio while configuring your design. It shows the exact rendered letter height for your selected size, so you can confirm compliance with the 2-inch federal minimum before ordering.
Mistake 2: USDOT numbers wrapping to multiple lines
Long USDOT numbers (7 or 8 digits) sometimes split across two lines on smaller magnets. When that happens, the effective letter height drops below the 2-inch federal minimum — creating a compliance violation even though the technical letter height of each individual digit is correct.
Solution: All Signazon USDOT magnet templates use a text editor that disables line wrapping. Your full USDOT number stays on a single line at compliant height regardless of how many digits it contains.
Mistake 3: Poor color contrast
Designing with light gray text, gradient fills, pastel combinations, or any low-contrast palette. These designs fail the 50-foot visibility test required under 49 CFR Part 390.21, even when the letter height is correct.
Solution: Use high-contrast color combinations — black text on white background or red text on white background are the most reliable and are featured in Signazon's compliance-ready templates. Bold sans-serif fonts read more clearly at highway distance than thin or decorative fonts.
Mistake 4: Ordering magnets for non-metal cab doors Assuming your truck has steel cab doors when it actually has aluminum or fiberglass panels. Ford F-150 (2015 and newer), Ford Super Duty F-250 and F-350 (2017 and newer), and many composite-body box trucks use non-metal body panels where magnets will not hold at highway speeds — or at all.
Solution: Before ordering, verify your cab material by pressing a small household magnet against the door. If it sticks firmly, the surface is compatible with magnetic signs. If it slides off, your truck has non-metal panels — select the Easy Stick Vinyl material option in the configurator above, which uses a patented low-tack adhesive designed to bond to aluminum and fiberglass surfaces.
